H900 Dual SIM Gigabit 5G Router

Description

5G technology is the central of future technologies and world’s industries. The E-Lins H900 series 5G router with Ethernet is a compact, ruggedized 3G/4G LTE/5G cellular networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for IoT (Internet of Things) and In-Vehicle applications. Super mini size suitable for embedding applications.

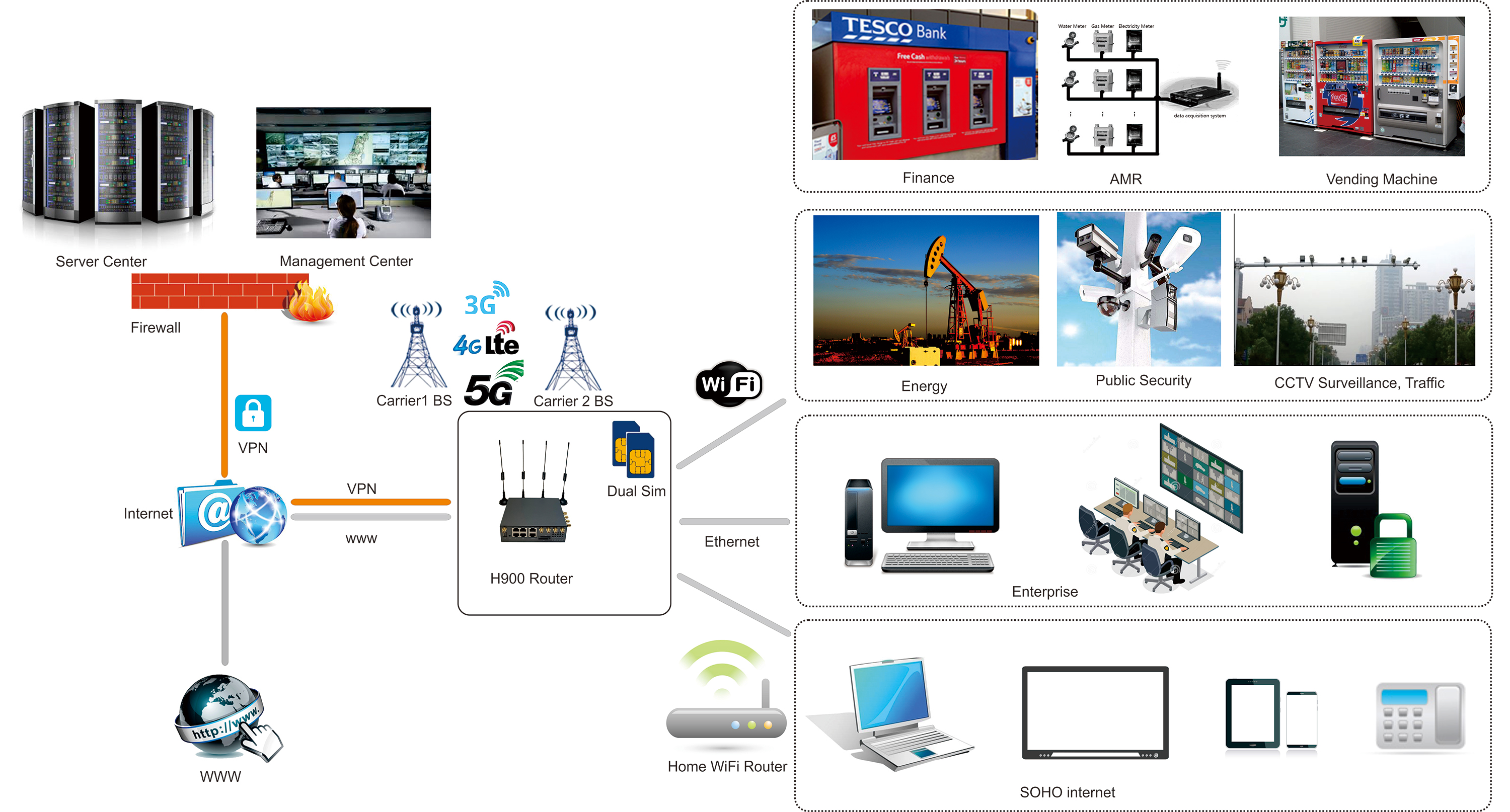

In addition to the robustness, reliability, security, friendly-using, the H900 5G router with Ethernet is competent to be engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, AMR, vehicle, retails, vending machines, power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other fields.



More Pictures and Diagram for H900 5G Router >>

Multi-carrier 2G/3G/4G LTE/5G support with two SIM card slot;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding);
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
Dual-band or Tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz), MU-MIMO WAVE2;
Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
GPS / Beidou support;
Serial Port;
DI/DO port * 4;
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;
Robust Metal Case is ruggedized for vibration, shock;
Desktop, Wall-mount and Din-rail mount of installation;
External antenna connectors for high gain antennas replacement;
MIMO supported;

>> E-Lins has a better industrial design

>> Industrial Design. Rubust and Working in Wide Range Temperature

H900 5G router with Ethernet is industrial designed, excellent function to ensure 7x24h running in stability and reliability;

Wide range power input with dual types of input supported;
Alloy-metal case, IP30 protection standard;

Quality industrial grade casing provides robust and reliable 5G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

>> With Multi-Powerful-Features



>> Built-in Industrial Modem Module and Dual SIM Card Slot

The H900 can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM Card Slot, users can insert two SIM cards to dialup 2G/3G/4G/5G networks directly.

>> Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO

The H900 SIM card 5G router provides option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.

With multi radios, H900 gets 2~3 times number of served clients comparing to normal single radio.

With multi data stream, H900 gets 3~4 times data bandwidth comparing to normal single data stream.

With MU-MIMO technology, H900 gets 2~3 times data bandwidthand and number of served clientscomparing to normal single radio single data stream.

H900 SIM card 5G router supports high gain WiFi replacement to meet different applications.

>> Rich Interface

>> VPN Safety and Securiy

Offer more VPN safety application schemes, data transmission reach to financial grade standard.
E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

>> Dual Power Input

The H900 Dual SIM 5G Router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

>> Beidou / GPS is supported

>>Multi-management

Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900 5G router easily and flexibly.

All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
